API Spec. 7K High-Pressure Rotary, Vibrator & Kelly Hoses
Modern deep-well drilling configurations subject high-pressure fluid lines to intensive mechanical pulsations, abrasive mud slurry friction, and heavy structural flexing. Substandard flexible elements missing strict certified build parameters frequently burst or delaminate, leading to expensive rig downtime and environmental hazards. Shanghai PME Industrial manufactures high-grade api 7k rotary vibrator hose and flexible kelly line systems built to isolate heavy pulsation strains between the mud pump manifold and the standpipe setup.
Our core product line is engineered to comply with the rigorous requirements of API Spec. 7K – 6th Edition – FSL Level 2. Featuring multiple high-tensile steel wire reinforcement layer structures, this specialized 7500 psi rotary drilling hose assembly guarantees optimal fatigue life margins. Whether managing structural vibration displacements on your drill floor or transferring heavy slurry mud capacities, our flexible lines maintain steady mechanical properties under harsh sour gas (H2S) environments and extreme pressure drops.

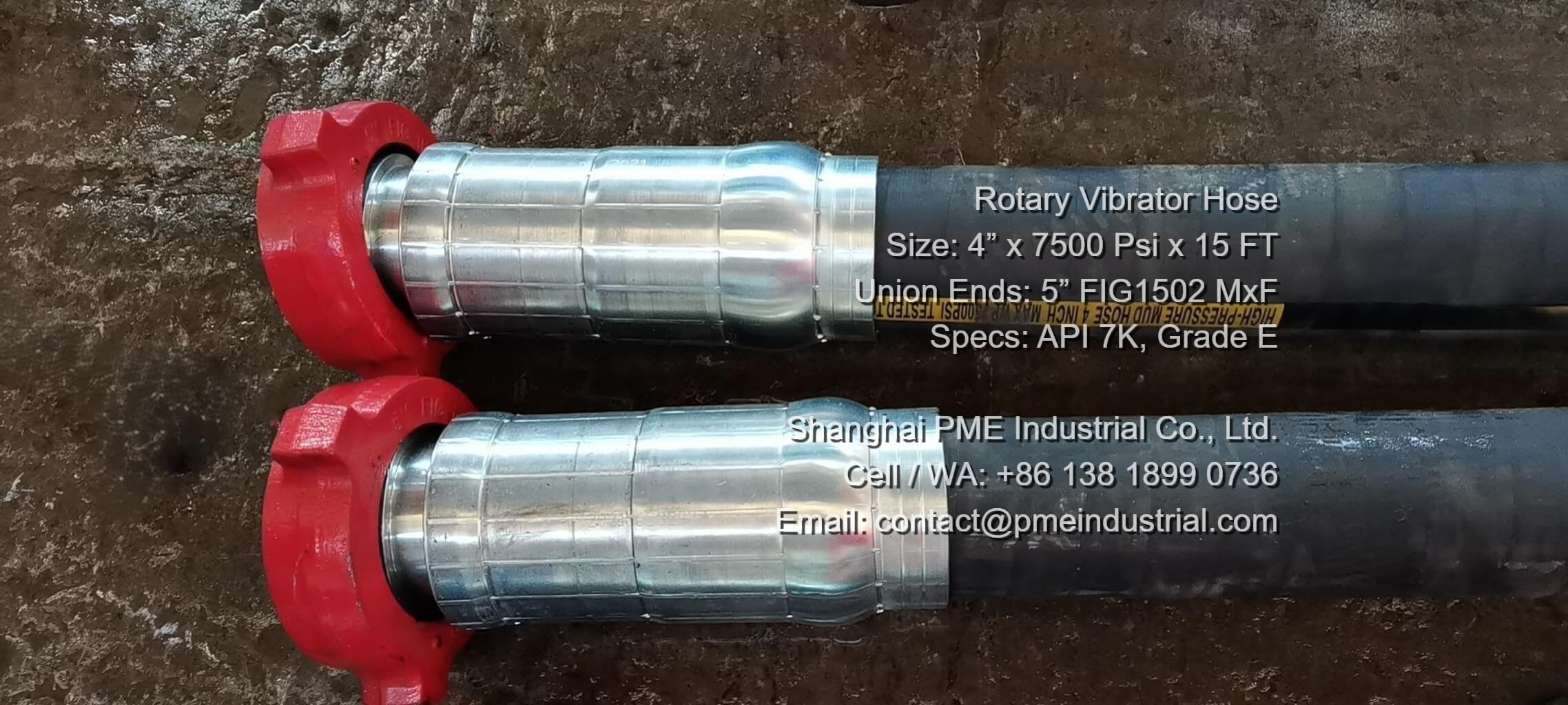

API Spec 7K Standard Product Layline Markings

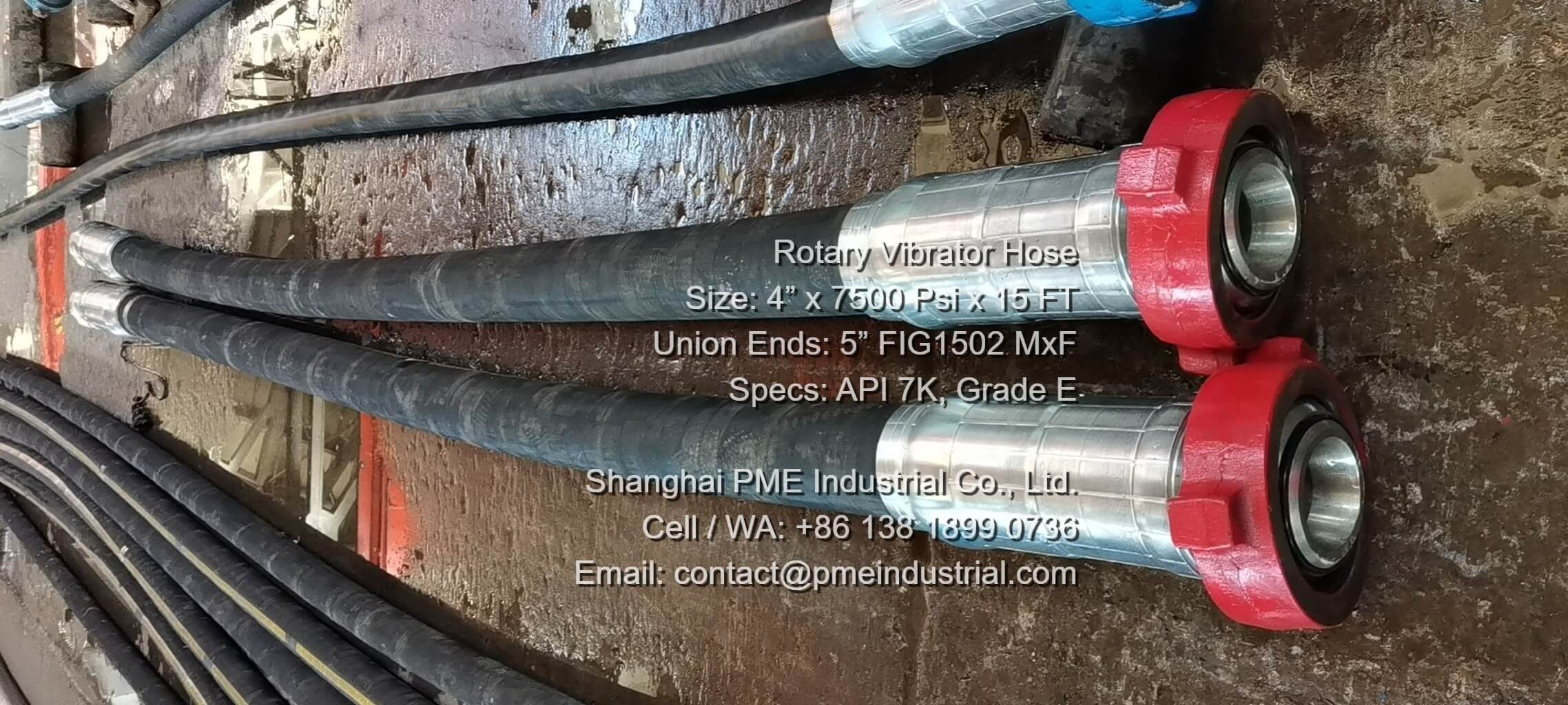

Rigorous 11,250 PSI Hydrostatic Validation Chamber

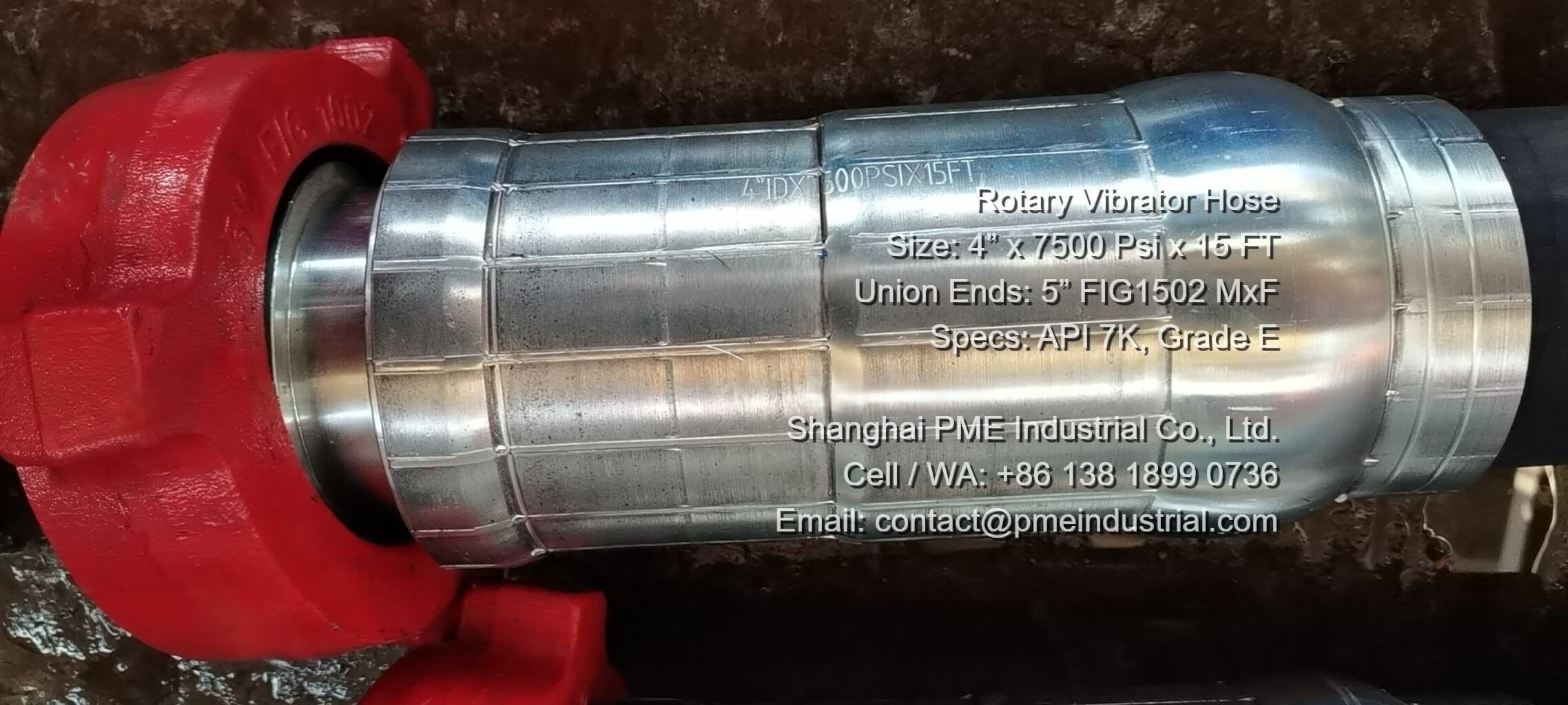

Forged Fig. 1502 Butt-Weld Assembly End Fitting
Technical Profile: Featured 4” 7,500 PSI Vibrator Assembly
The flagship configuration engineered for heavy drilling rigs covers our 4 inch Internal Diameter (ID) assembly. This product acts as the principal buffer link to isolate mud pump reciprocating dynamics:
• Structural Geometry: Formed with a 4″ Internal Diameter coupled with a robust 5″ Outer Diameter (OD) profile, optimizing flow area boundaries while reinforcing external abrasion resistance.
• Pressure Safety Margins: Built for a continuous 7,500 PSI Working Pressure (WP) profile, with every factory run subjected to an 11,250 PSI Hydrostatic Test Pressure (TP) evaluation to guarantee stable core containment margins.
• Premium End Fittings: Complete with 5″ Figure 1502 Butt-weld Male & Female Hammer Union end assemblies, enabling leak-free mating with standard high-pressure flowline manifolds.
• API Compliance Grade: Fully certified to API Spec. 7K – 6th Edition requirements, holding FSL Level 2 operational classifications for maximum performance reliability.
Flexible Oilfield Hose Selection & Sourcing Matrix
To assist global drilling procurement teams, Shanghai PME Industrial manufactures a versatile array of kelly hose 5000 psi and high-volume rotary drilling flexible sets mapped to distinct rig requirements:
1. 2″ ID × 63 Feet Kelly Line (5,000 PSI WP / 7,500 PSI TP): A customized extended-length hose choice optimized for high-mast traveling blocks. Complete with integrated Figure 1502 Male x Female hammer unions, this build is fully conditioned for Sour Gas (H2S Service) processing environments and includes original API 7K trackable certification logs.
2. 3″ ID × 10 Feet API Grade D Kelly Assembly (5,000 PSI WP / 7,500 PSI TP): Engineered to comply with API Spec 7K-FSL2 criteria, this short-radius bypass line manages temperature variables extending from -20°C up to 121°C. Shipped ready for rapid deployment with 3″ welded Fig 1502 unions, integrated safety clamps, safety chains, and durable lifting eyes.
3. 5″ ID × 50 Feet “Super Driller” Rotary Assembly (7,500 PSI WP / Grade E): Designed for ultra-deep mud circulating lines. Built to api 7k grade e hose manufacturing baselines, this high-volume line features oversized 6″ Fig. 1002 Butt-weld Female Subs at each end, complete with dual safety clamp/cable networks and heavy lifting eye components.
Technical Configuration Matrix
| Hose Application Type | Dimensions (ID × Length) | Pressure Rating (WP / TP) | End Connections Fitted | API 7K Grade / Accessories |
|---|---|---|---|---|
| Rotary Vibrator Hose | 4″ ID × 5″ OD × 15 Feet | 7,500 PSI / 11,250 PSI | 5″ fig 1502 hammer union hose W/M | 6th Edition, FSL Level 2 |
| Long-Reach Kelly Hose | 2″ ID × 63 Feet | 5,000 PSI / 7,500 PSI | 2″ Fig 1502 Male x Female | H2S Severe Service / API Certs |
| Thermal Range Kelly Hose | 3″ ID × 10 Feet | 5,000 PSI / 7,500 PSI | 3″ Welded Fig 1502 M/F Sub | Grade D, FSL2, Clamps & Chain |
| Super Driller Rotary | 5″ ID × 50 Feet | 7,500 PSI / 11,250 PSI | 6″ Fig 1002 Butt-weld Female | Grade E, Safety Cables & Eyes |
Advanced Polymer Engineering & Coupling Security
Every line batch under the PME pme industrial drilling hoses classification utilizes a co-extruded synthetic rubber core lining tube that resists oil, water, and corrosion-inducing chemical additives. The end union terminations are machined out of premium forged steel billets, butt-welded via automated systems, and comprehensively checked via non-destructive thermal testing methods. This ensures that when under heavy working loads up to 15,000 PSI test capacities, the critical vulcanized rubber-to-metal bonding zones remain structurally contiguous.
Request API 7K Flow Component Quotes
Shanghai PME Industrial supplies complete quality tracking data sheets and pressure validation certificates with every single rotary vibrator and kelly line package. Contact our specialist engineering desk for customized lengths, sour service parameters, or swift bulk price estimations.
