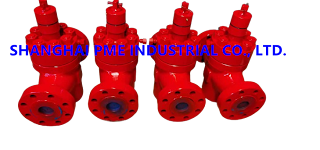

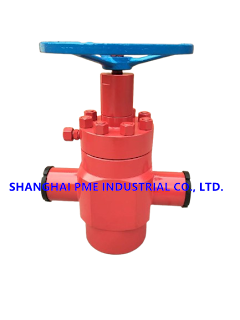

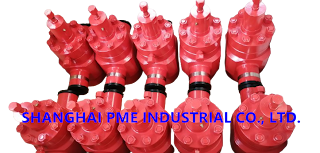

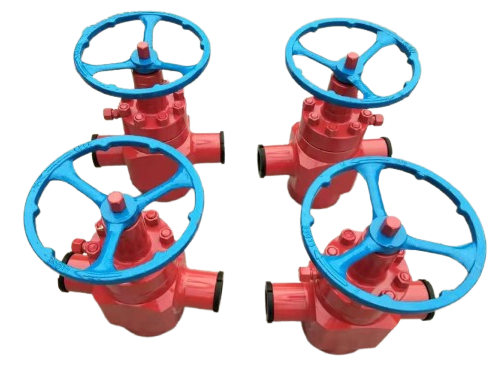

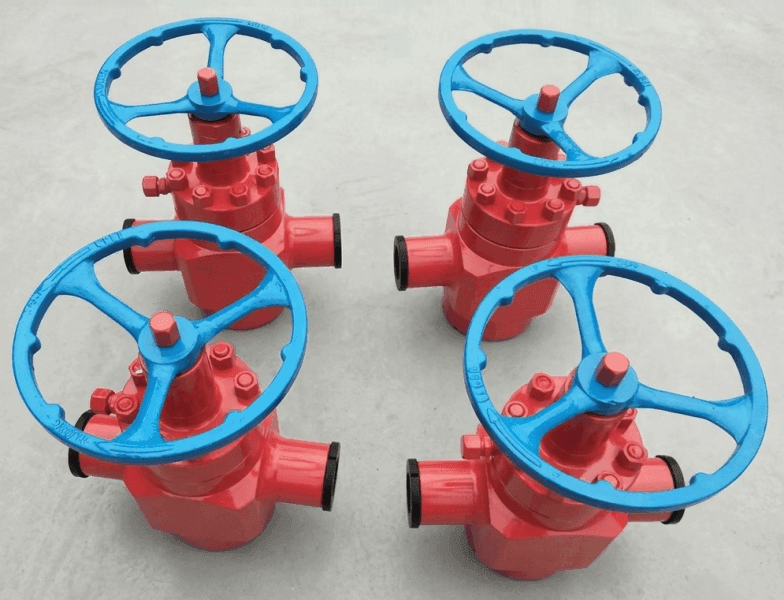

Parallel Gate Valve
PME Parallel Gate Valves are high-performance flow control solutions designed for wellhead and manifold applications. Featuring an integral forged body and hot-spraying welded plates, our valves ensure maximum pressure endurance and long service life in sour gas environments.
- Pressure Ratings: 5,000 PSI to 15,000 PSI (35MPa – 105MPa)
- Nominal Size: 2-1/16” to 4-1/16”
- Drive Mode: Available in Manual or Hydraulic Powered versions.
Superior Features & Construction
Advanced Sealing
Valve plates and seats feature hot-spraying welding for high hardness and exceptional wear resistance, ensuring a leak-proof seal.
Forged Integrity
Integral forged valve body provides high strength and reliability under extreme pressure, reducing the risk of fatigue failure.
Low Operating Torque
The direct flow-way design ensures minimal pressure drop and low starting torque for easy operation even at high pressures.
Technical Specification Overview
| Specification | Details |
|---|---|
| Working Pressure | 5,000 PSI, 10,000 PSI, 15,000 PSI |
| Size Range | 2-1/16″, 2-9/16″, 3-1/8″, 4-1/16″ |
| Temperature Class | -46°C to 121°C (Class LU) |
| Compliance | API 6A, NACE MR 0175 (H2S Service) |
| End Connections | Flanged, Threaded, or Union Ends |
| Stem Design | Exposed-rod or Hidden-rod type available |
Ordering & Support
Sour Gas Ready: Fully compliant with NACE MR 0175 standards, making PME gate valves ideal for aggressive fluids containing H2S and CO2.
Custom Outlets: We provide versatile connection options including API flanges and hammer unions to match your existing manifold layout.
Hydraulic Options: For automated systems, we offer hydraulic-actuated gate valves for remote wellhead control and safety shutdown.
Looking for high-pressure gate valves? Specify your bore size, pressure rating, and temperature requirements. Email contact@pmeindustrial.com today for technical support and a competitive quotation.
