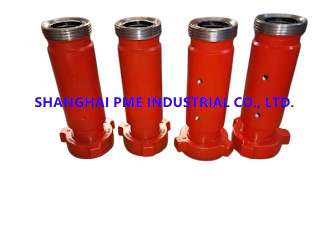

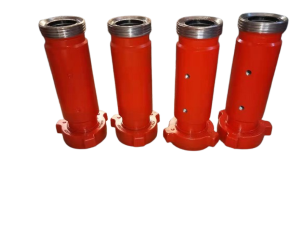

Well Test Data Header
PME Well Test Data Headers are precision-engineered components mounted upstream of the choke manifold to monitor production parameters and ensure wellbore safety.
- Pressure Range: 5,000 to 15,000 PSI
- Standard: H2S (NACE MR0175) / Standard Service
- Connections: Hammer Union or API Flange
Main Technical Parameters of Data Header
| Working Pressure | Standard Connection Size | Common Configuration |
|---|---|---|
| 42 MPa (6,000 PSI) | 2″ FIG 602 | Length = 3 FT |

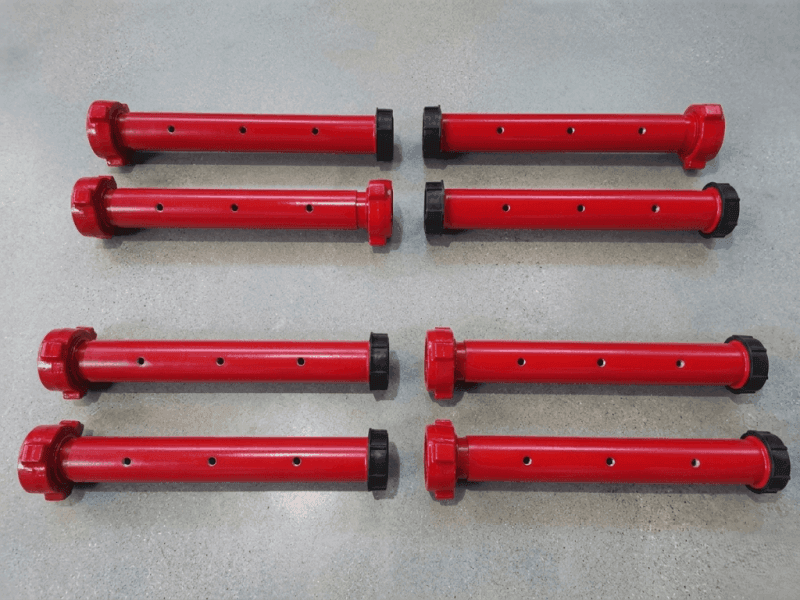

| 70 MPa (10,000 PSI) | 2″ FIG 1502 / 3″ FIG 1002 | Length = 3 FT |
| 105 MPa (15,000 PSI) | 2″ FIG 1502 / 3″ FIG 1502 | Length = 3 FT |
| 35 MPa (5,000 PSI) | 3-1/8″ / 4-1/16″ API Flange | Integral Flanged |
| 70 MPa (10,000 PSI) | 3-1/16″ / 4-1/16″ API Flange | Integral Flanged |
| 105 MPa (15,000 PSI) | 3-1/16″ / 4-1/16″ API Flange | Integral Flanged |
Key Functions & Applications
Monitoring & Sampling
Designed to measure and monitor pressure, temperature, and perform wellbore fluid sampling during flowback operations.
Safety & Protection
Integrated ports for sand detection and chemical injection, ensuring the integrity of the surface well test safety system.
Flexible Installation
Can be installed both upstream and downstream of the choke manifold to adapt to different well testing requirements.
Why PME Well Test Data Headers?
In the demanding environment of oil and gas exploration, the Well Test Data Header is a critical link for real-time data acquisition. PME Shanghai manufactures data headers using high-strength alloy steel, ensuring reliable performance in both standard and sour gas (H2S) service environments. Our products are fully compatible with mainstream oilfield equipment and can be customized with various ports for instrumentation, including pressure gauges and thermowells. With a commitment to quality and API standards, PME provides the durability needed for high-pressure fluid delivery and well testing lines.
Looking for related equipment? View our Hose Loop series or contact us for a comprehensive surface well test package.
