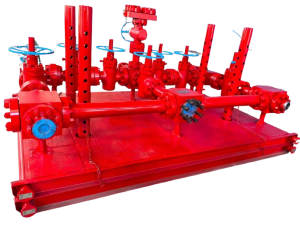

Choke & Kill Manifold
PME Choke Manifolds are essential well control equipment used to maintain pressure balance during drilling, well testing, and flowback operations. Engineered to safely handle high-pressure fluids and allow for dual-flow paths to downstream process equipment.
- Applications: Drilling, Well Testing, Cleanup, and Flowback.
- Design: Modular skid-mounted design for rapid deployment.
- Components: Integrated with high-performance chokes, plug valves, and gate valves.
Standard Configuration (3-Way 5-Valve)
Our high-pressure drilling choke manifold is assembled with premium API 6A valves and integral fittings. A typical 15,000 PSI configuration includes:
- 5 Sets: Plug Valves (2″ FIG 1502, 15,000 PSI)
- 2 Sets: Adjustable Choke Valves (2″ FIG 1502, 15,000 PSI)
- Integral Fittings: Tees (Male x Male x Male) 2″ 1502 15,000 PSI
- Union Adapters: 2″ FIG 1502 15,000 PSI (Female x Male)
- Accessories: Blind Male/Female Unions, Pressure Gauges, and Skid Bases.
Operational Flexibility
The combination of adjustable and fixed chokes provides greater flexibility for wellbore cleanup and allows for accurate flow control under differing test conditions with minimal interference.
Key Features & Global Supply
Well Control Integrity
Critical for mud circulation when blowout preventers (BOPs) are closed, ensuring safe pressure management during gas kicks or well control incidents.

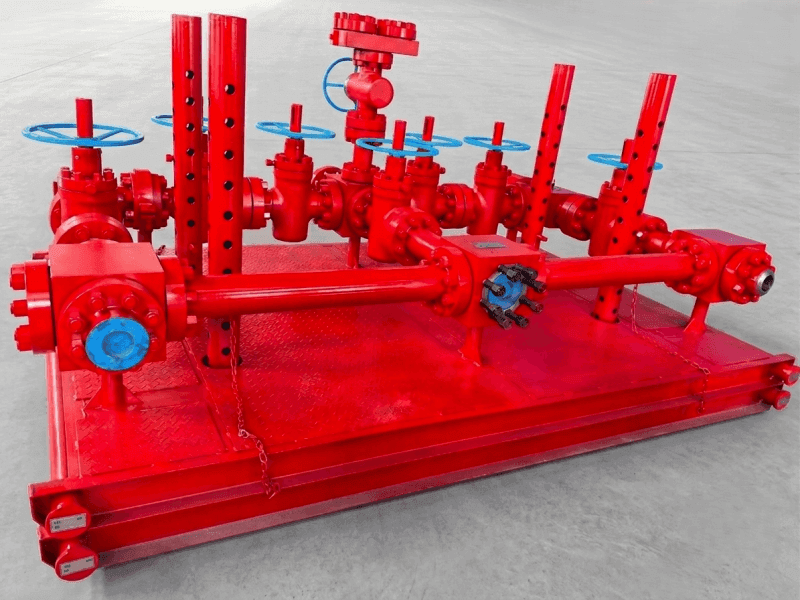

Skid-Mounted Convenience
All manifolds are assembled on heavy-duty skid bases for easy transportation and protection of sensitive valves and gauges in harsh oilfield environments.
Bespoke Engineering
As a leading supplier in China, PME Industrial’s technical team designs manifolds based on specific client drawings and specifications to ensure 100% field compatibility.
Looking for a reliable Choke Manifold manufacturer? From appraisal well testing to extended production testing, PME provides high-quality manifolds for the USA, Saudi Arabia, UAE, and other global markets. Email contact@pmeindustrial.com with your specification for a professional quote.
