HP Acid and Fracturing Hose
PME HP Acid and Frac Hose is a critical component engineered for the extreme environments of hydraulic fracturing and industrial chemical transfer. Designed to handle high-pressure flow and corrosive materials with maximum safety and efficiency.
- Working Pressure: 10,000 PSI to 20,000 PSI CWP
- Size Range: 2″, 3″, 4″, 6″ Inner Diameter
- Application: Fracturing, Cementing, and Acidizing Lines
Engineered for Extreme Conditions
Corrosion Resistance
Our HP Acid hoses feature specialized inner tubes resistant to concentrated acids and abrasive fracturing fluids, significantly extending service life in sour gas and acidizing operations.
Extreme Pressure Handling
Built with multiple layers of high-tensile steel reinforcement, these hoses safely manage continuous working pressures up to 15,000 and 20,000 PSI with a superior safety factor.
Reliable End Connections

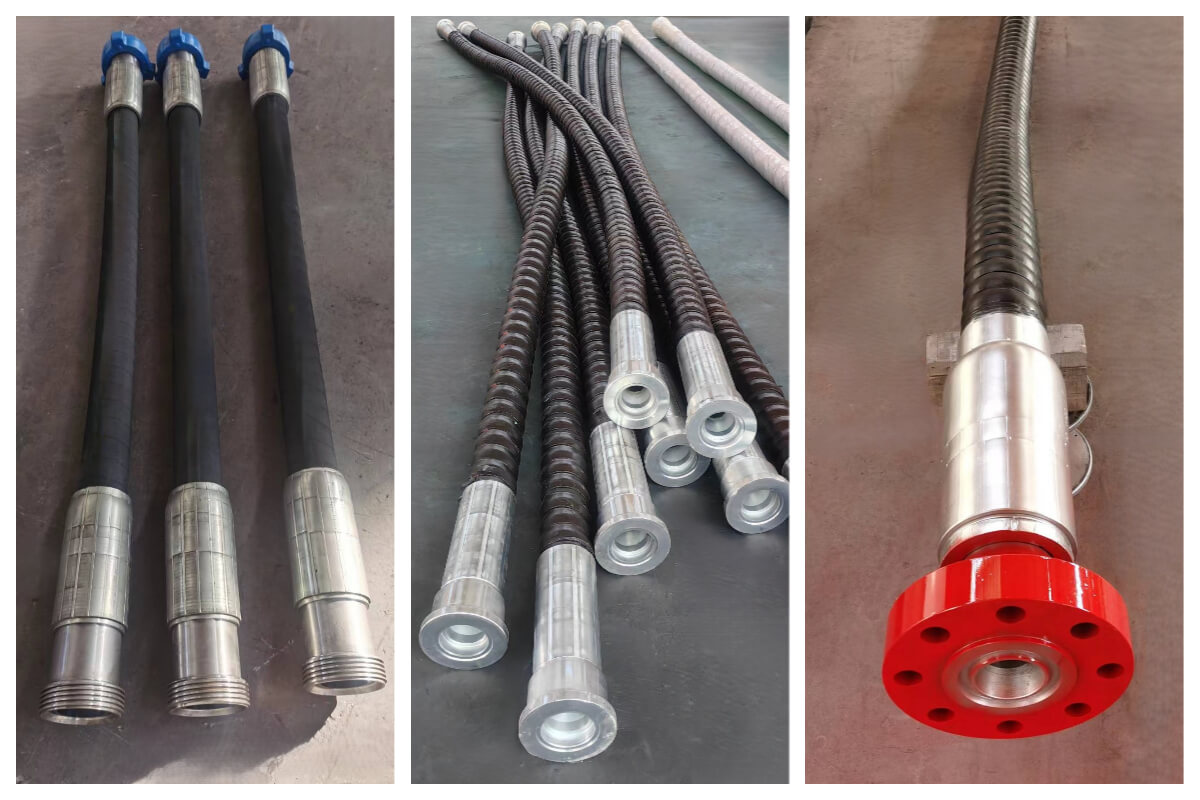

Supplied with integral **FIG 1502 or FIG 1002** hammer union ends, ensuring quick, leak-proof connections for mobile fracturing fleets and cementing units.
Technical Specifications
| Hose Type | Inner Diameter (ID) | Working Pressure (WP) | End Connections |
|---|---|---|---|
| Standard Frac Hose | 2″, 3″, 4″ | 10,000 PSI | FIG 1002 / 1502 |
| High-Pressure Acid Hose | 2″, 3″ | 15,000 PSI | FIG 1502 Integral |
| Super HP Frac Hose | 3″, 4″ | 20,000 PSI | FIG 2202 Union |
| Large Bore Transfer Hose | 5″, 6″ | 5,000 – 7,500 PSI | FIG 602 / Flanged |
Safety & Performance Standards
Strict Testing: Every fracturing hose assembly undergoes rigorous hydrostatic testing at 1.5 times the working pressure before dispatch to ensure field safety.
Durability: The outer cover is engineered for superior abrasion, ozone, and weather resistance, perfect for harsh oilfield environments.
Customization: PME provides customized lengths and specialized end fittings (Hammer Union, Flange, or Hub) tailored to your manifold requirements.
Ordering Information: When requesting a quote, please specify the inner diameter, required length, maximum working pressure, and type of fluid (Acid or Standard Frac fluid). PME Industrial delivers high-performance solutions for your most demanding flowline tasks.
