API 6A Integral Fittings (Elbow, Tee, Cross)
PME API 6A Integral Fittings are manufactured from high-strength alloy steel, fully heat-treated to enhance load-bearing capacity and extend service life. These connections are essential for high-pressure cementing, fracturing, and well control systems.
- Working Pressure: 6,000 PSI to 20,000 PSI
- Nominal Size: 2″, 3″, 4″
- Ends: Hammer Union (Weco Type) or Threaded Connection
Comprehensive Range of High Pressure Connectors
Diverse Configurations

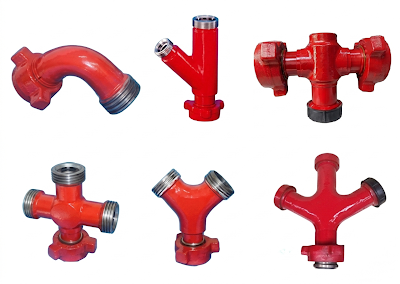

Our integral line includes 90° & 180° Elbows, Tees, Crosses, Y-Tees, Laterals, and Fishtails, ensuring flexible routing for any fracturing or cementing manifold.
Severe Service Ready
Available for Standard, Low Temperature, and Sour Gas (H2S) conditions. H2S-rated fittings are strictly manufactured to NACE MR0175 standards.
Interchangeable Union Ends
Features standard union ends (FIG 1502, 602, etc.) for quick and easy connection with major industry equipment, designed as per API Spec 6A.
Popular Models & Specifications
| Type | Size & Figure | End Connection (M/F) | Working Pressure |
|---|---|---|---|
| Long Radius Elbow | 2″, 3″ FIG 1502 | Male x Female | 15,000 PSI |
| Short Radius Elbow | 2″, 3″ FIG 1502 | Male x Female | 15,000 PSI |
| Integral Tee | 2″, 3″ FIG 1502 | M x F x F / M x F x M | 15,000 PSI |
| Integral Tee | 2″, 3″ FIG 1502 | M x M x F / F x F x F | 15,000 PSI |
| Integral Cross | 2″, 3″, 4″ FIG 1502 | Custom Configurations | 15,000 PSI |
| H2S Service Fittings | 2″, 3″ FIG 2202 | Union / Welded | 20,000 PSI |
Ordering & Customization
Custom Built: PME provides custom-built API 6A integral connectors tailored to your specific site requirements and technical drawings.
Identification: Every fitting is clearly marked with its size, figure, and pressure rating for safe and easy field identification.
Reliability: 100% hydrostatic testing and material traceability reports (MTR) are provided for every batch to ensure oilfield safety.
Request a Technical Quote: Please specify the size, pressure rating, connection type (M/F configurations), and service environment (Standard or H2S). Our engineering team will provide the best price and lead time.
