TPU Layflat Hose for Fracking
PME Industrial’s fracking hoses are high pressure, strong polyurethane lay flat discharge hoses designed for aggressive water pumping around mine and drill sites. Being totally lay-flat, this product is light-weight and easy to handle. The transfer of the fracking hose to the deployment system is fast and easy. Spooled from the packing onto the reelers for easy deployment along haul roads or down the pit wall, pumping can begin in a matter of hours instead of days.
- Inside Diameter: 2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 20″
- Working Pressure: 100 Psi, 150 Psi, 200 Psi, 250 Psi, 300 Psi, 410 Psi, 610 Psi
- Color Schemes: Olive Green, Black, Sand Yellow, Blue, and Tangerine Red
Product Features
Material & Coating
Integrated inner and outer coating of abrasion resistant Polyurethane. The hose is UV stabilized and highly resistant to oil and chemicals.
Terrain & Conditions
Extra abrasion resistant for rugged terrain and extreme conditions. It remains flexible in all weather conditions from -55°C to +80°C (-67°F to +176°F).

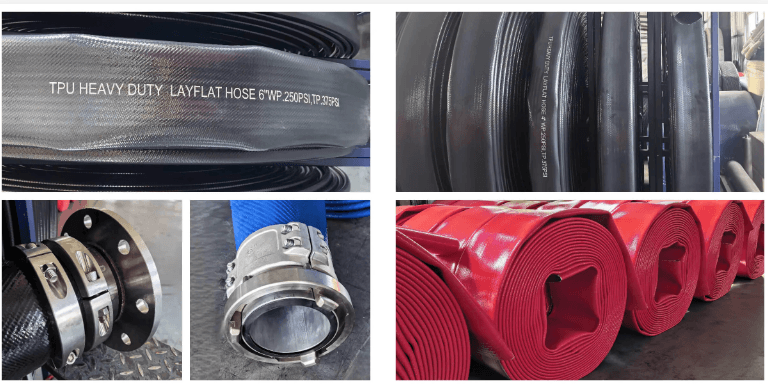

End Couplings
Available with premium Storz, Victaulic, Camlock couplings, or fully customized upon customer request to fit existing high-volume pumping irons.
Applications & Quality
Engineered for heavy-duty, high pressure applications with pH3 – pH10 at ambient water temperature. Manufactured by an ISO 9001 approved company.
Recommended For
The fracking hose has been designed to assist with mine dewatering where the constant movement of pumps and surface equipment makes rigid and semi-rigid piping a problem. It is highly recommended for:
- Aggressive water pumping around mine and drill sites.
- Mine dewatering applications requiring flexible, total lay-flat handling.
- Fast deployment systems using hose reelers along haul roads or down pit walls.
Technical Product Specifications
Review our availability matrix of inside diameters and working pressure combinations designed for global energy and industrial pumping sectors.
| Nominal Inside Diameter (ID) | Available Working Pressure (WP) | Standard End Couplings | Standard Color Schemes |
|---|---|---|---|
| 2″, 3″, 4″, 5″, 6″, 8″ | 100 psi / 150 psi / 200 psi / 250 psi / 300 psi / 410 psi / 610 psi | Storz, Victaulic, Camlock, or Customer Request | Olive green, Black, Sand yellow, Blue, Tangerine red |
| 10″, 12″, 14″, 16″, 20″ | 100 psi / 150 psi / 200 psi / 250 psi / 300 psi / 410 psi | Storz, Victaulic, Camlock, or Customer Request | Olive green, Black, Sand yellow, Blue, Tangerine red |
Professional Supply of TPU Layflat Hose
PME Industrial is a premier supplier and exporter of TPU Layflat Hose solutions for the global oil, gas, and mining industries. Designed to mitigate rigid piping problems where constant movement of pumps is required, our flexible pipelines deliver heavy-duty performance under extreme terrain conditions. Backed by certified management, PME Shanghai ensures your high-pressure water transfer and deployment projects run efficiently across North America, the Middle East, and Oceania markets.
