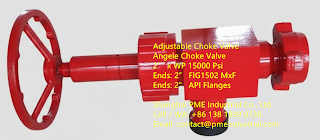

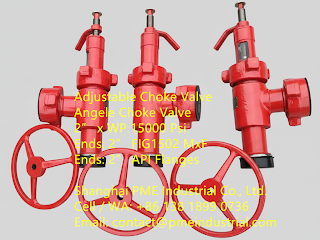

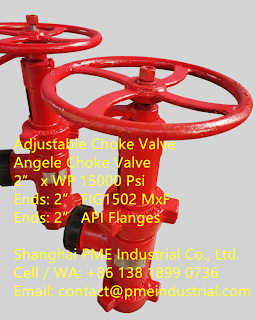

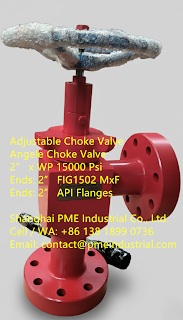

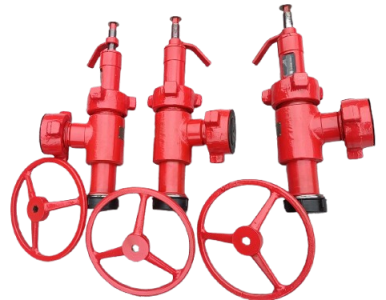

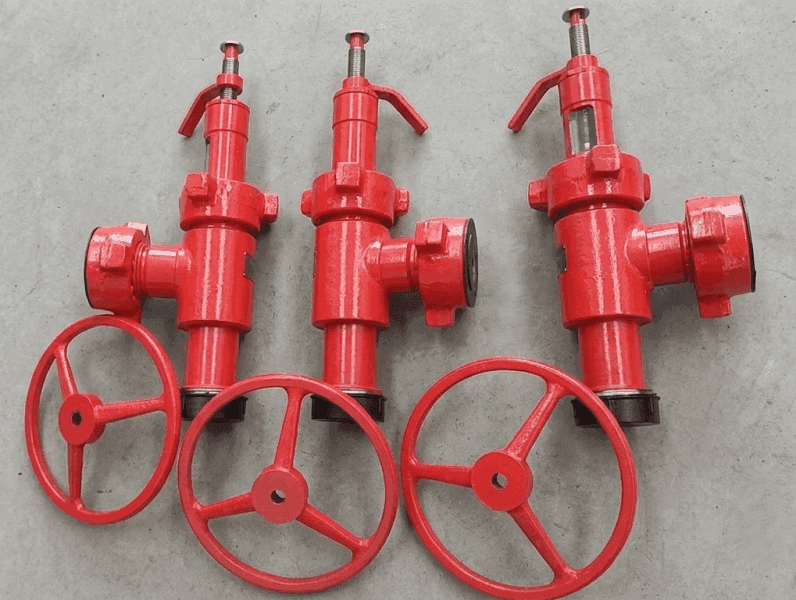

Adjustable Choke Valve
PME Adjustable Choke Valves are engineered for precision flow control and pressure regulation in high-pressure well manifolds. Designed to deliver safety and performance in the most demanding oil and gas environments.
- Pressure Ratings: 2,000 PSI to 20,000 PSI
- Connections: Hammer Union (FIG 602, 1002, 1502) or API Flange.
- Materials: Suitable for Petroleum, Natural Gas, Mud, and Sour Gas (H2S/CO2).
Key Applications & Features
Wellhead Control
Maintaining desired pressure levels to optimize production and prevent downstream equipment damage during operation.
Precise Regulation
Rotating the handwheel adjusts the effective flow area, allowing for rapid and accurate production rate management.
Rapid Deployment
Union end and API flange designs allow for quick, secure connections, ideal for temporary installations and well testing.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Working Pressure | 2,000 PSI – 20,000 PSI (14MPa – 140MPa) |
| Nominal Bore | 2″, 3″, 4″ |
| Manufacturing Standards | API 6A, API 16C, NACE MR0175 |
| Union Connections | 2” FIG 1502 MxF, 3” FIG 1502, 4” FIG 1502 |
| Flange Connections | API Flange 2-1/16”, 3-1/8”, 3-1/16”, 4-1/16” |
| Medium | Oil, Natural Gas, Water, Mud, H2S, CO2 |
Global Service & Availability
Target Markets: PME high-performance choke valves serve major oil-producing regions, including the USA, Saudi Arabia, UAE, Canada, and Russia.
Well Cleanup & Testing: Engineered to safely handle initial high-pressure flows during well commissioning and intervention tasks.
Full Support: Optional repair kits are available for all models to ensure long-term operational reliability in the field.
Contact PME Industrial: Whether you require an angle choke valve with flange ends or an adjustable needle choke with hammer unions, email contact@pmeindustrial.com for a technical data sheet and competitive quote.
