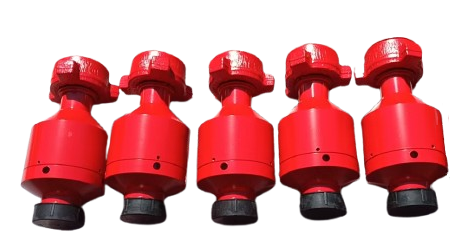

Check Valve
PME Check Valves are designed to prevent backflow in high-pressure piping systems. Manufactured from high-strength alloy steel forgings and equipped with hammer union ends, these valves ensure a long service life and easy maintenance in demanding oilfield applications.
- Types: Top Cover Baffle, Beeline Baffle, and Dart Type.
- Construction: Precision forged bodies for maximum safety.
- Safety: Apparent flow direction marks for error-free installation.
Check Valve Types & Features
Top Cover Baffle Type
Features a simple internal structure that allows for fast onsite repair without removing the valve from the piping system. High maintenance efficiency for continuous operations.
Beeline Baffle Type
Forged with a sleek appearance and easy installation. Supports both standard and reverse flow configurations. Note: Must be installed horizontally with the base facing downward.
Dart Type Check Valve
Offers unlimited installation directions. Known for its air-tight performance and self-locking capabilities, making it ideal for gas and high-pressure liquid environments.
Technical Specifications
| Specification | Details |
|---|---|
| Working Pressure | 6,000 PSI, 10,000 PSI, 15,000 PSI (CWP) |
| Manufacturing Standards | API 6A, NACE MR0175 (H2S Compatible) |
| End Connections | FIG 1502, FIG 1002, Threaded, or Flanged Ends |
| Materials | High Strength Alloy Steel Forging |
| Flow Identification | Permanent Flow Direction Markings on Valve Body |
| Application | Cementing, Fracturing, Acidizing, Well Testing |
Why Choose PME Check Valves?
Durable Forgings
Our integral forged bodies provide superior fatigue resistance compared to cast alternatives in high-pressure environments.
Easy Maintenance
The union end design facilitates rapid dismounting, reducing downtime during routine inspections or baffle replacements.
Global Compliance
Fully interchangeable with industry-standard Weco/FMC style connections, ensuring seamless integration into your current flowline.
Need a specific flow configuration? PME offers standard and reverse flow direction valves to meet your manifold requirements. Email contact@pmeindustrial.com for a formal quote.
