Up to 15,000 PSI
FSR System

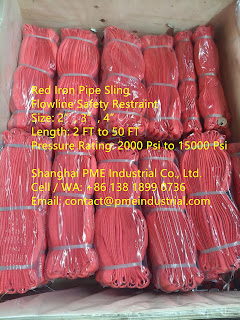

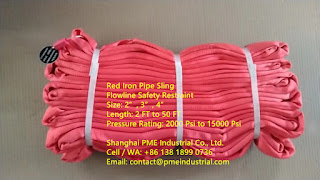

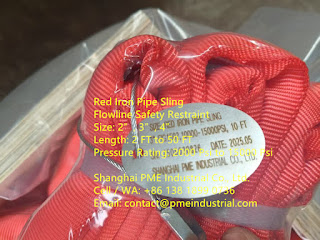

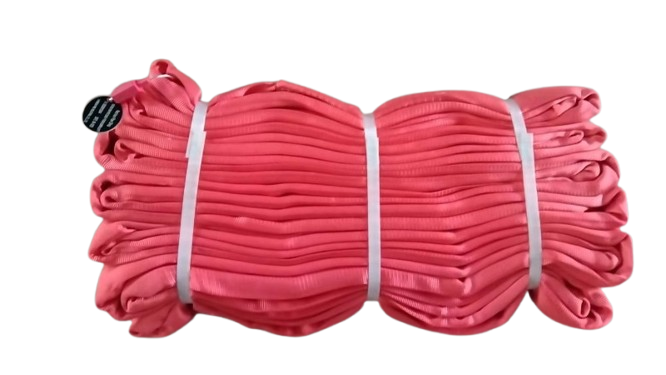

Red Iron Pipe Sling & Flowline Safety Restraint
Engineered to prevent pipeline whipping in the event of high-pressure flowline failure. PME Red Iron Pipe Slings provide a critical safety barrier for fracturing, well testing, and high-pressure pumping operations.
- Pressure Rating: 2,000 to 15,000 PSI
- Nominal Size: 2″, 3″, 4″
- Application: FIG 1502 Iron & Temporary Lines
Technical Specifications
| Parameter | Details |
|---|---|
| Material | High-Strength Synthetic Fiber / Steel Cable |
| Standard Lengths | 4 FT, 8 FT, 12 FT (Customizable) |
| Working Pressure | Up to 15,000 PSI (Grade Specific) |
| Service Temperature | -40°C to +121°C |
| Certification | Safety Compliance for Oilfield Operations |
Field Applications
Hydraulic Fracturing
Securing “red iron” configurations during high-pressure stimulation and pumping.
Well Testing
Restraining high-pressure flowlines during flowback and initial well cleanup.
Drilling Operations
Providing essential lashing for temporary high-pressure surface lines and manifolds.
