2″ 15,000 PSI Long Sweep Swivel Joint & Cementing Loop Assemblies
High-pressure well service operations demand maximum fluid containment and structural flexibility to mitigate destructive pulsations and heavy rig vibrations. Solid, unyielding temporary steel lines are highly susceptible to sudden metal fatigue, posing severe blowout risks under critical load limits. Shanghai PME Industrial manufactures heavy-duty long sweep swivel joint components and flexible cementing loop assembly units engineered to withstand continuous rotational stress while safely transporting abrasive mud slurries and cementing media.
This recently completed export production batch is precisely engineered for 2-inch nominal pipelines operating at 15,000 PSI working pressure, featuring standard FIG 1502 Male x Female hammer union connections. Available as standalone Style 10 swivels (delivering full 360-degree three-dimensional articulation) or assembled into complete 10 FT 15000 psi circulating hose loops, these flowline assets are fully ready for immediate dispatch to drilling crews and offshore exploration rigs throughout the Southeast Asia sector.
2″ FIG 1502 Style 10 Swivel Joints Ready for Packing
Finished 2 Sets of 15,000 PSI Cementing Loops

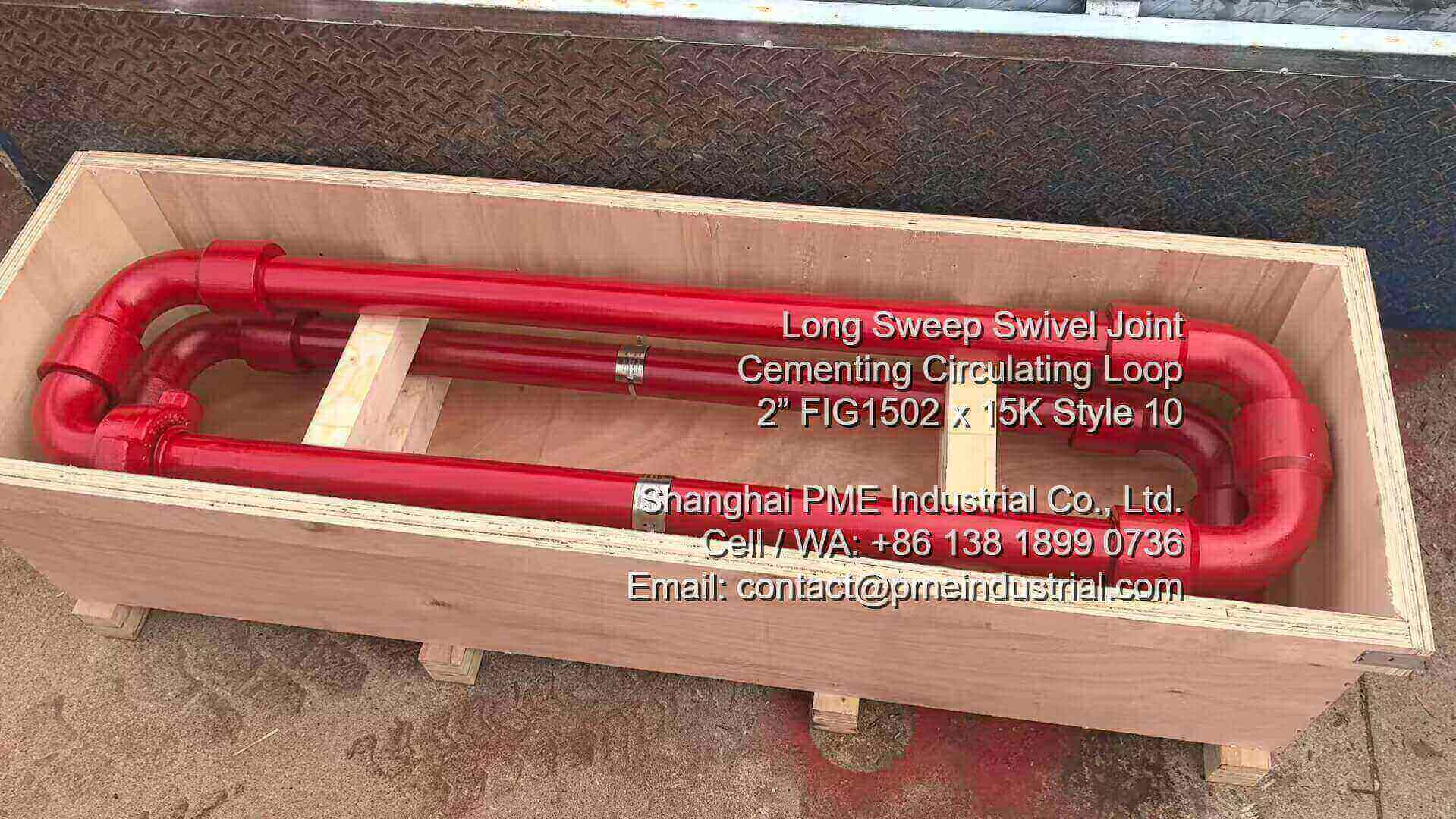

10 FT Cementing Loop Assemblies in Wooden Export Packing
Technical Selection Guide: Selecting High-Pressure Temporary Circulating Lines
When integrating a high pressure flowline into well testing, cementing, or fracturing manifolds, drilling engineers face critical configuration choices to guarantee onsite safety and optimal fluid flow. A mismatched line or improper swivel selection severely limits performance. Use the following criteria for choosing the right fig 1502 swivel joint and loop combinations:
1. Plane Configuration and Freedom of Rotation (Style Selection)
The choice of swivel style establishes the layout flexibility. For full three-dimensional movement across fracturing manifolds and rig setups, a Style 10 swivel configuration is required. Featuring three swiveling planes and precision-machined triple ball races, the Style 10 layout isolates multi-directional equipment shifting. If the application only requires standard single-axis bending or linear shifts, less complex styles (such as Style 50 or Style 20) can be specified to eliminate unneeded weight.
2. Elbow Profile and Slurry Fluid Velocity Limits
Standard tight-radius elbows suffer accelerated wall thinning under high-velocity slurry transit. PME’s core oilfield swivel joint 15k items feature an advanced Long Sweep internal curvature. This sweeps the medium smoothly through a maximized geometric bend radius, dramatically lowering wall wear from sand and cement fractions. Ensure localized velocity parameters stay within recommended API limits for maximum life cycles.
3. Length Requirements and Operational Footprint
For cementing applications, a complete 10 FT cementing loop assembly provides the standard length span required to securely bridge the space between pump units and wellheads, allowing rapid layout deployment without custom pipe fitting.
100% Cross-Interchangeability with Global Standard Footprints
To prevent costly project downtime or reliance on single-source suppliers during field maintenance, PME Industrial components achieve absolute cross-compatibility with international premier brands. Our internal bearing tracks, external union constraints, and elastomeric seal recesses are machined precisely to global cross-reference charts.
Although PME is an independent Chinese manufacturer and not associated with Chiksan or SPM, our parts function as a direct, drop-in chiksan interchangeable swivel replacement. Procurement departments can install PME 2″ 15,000 PSI swivels and cementing loops straight into preexisting pipelines without modifying any manifold layouts.
Technical Configuration Matrix
| Product Line Classification | Nominal Size & End Connection | Cold Working Pressure (CWP) | Internal Configuration Details | Interchangeability Verification |
|---|---|---|---|---|
| Long Sweep Swivel Joint | 2″ Inch | FIG 1502 Male x Female | 15,000 PSI NSCWP | Style 10 (3 planes of rotation), Long Radius profile | FMC Chiksan & SPM Compatible |
| Cementing Loop Assembly | 2″ Inch | FIG 1502 Connections | 15,000 PSI Working Pressure | 10 FT Span Length, integrated with Style 10 swivels | Full standard drop-in crossover matching |
Request High-Pressure Flowline Sourcing Quote
Shanghai PME Industrial provides exhaustive material test reports (MTRs), hydro-pressure chart logs, and strict API manufacturing benchmarks with this newly completed export batch. Contact our global sales desk for precise dimension prints and competitive fast pricing.
