3 Inch Figure 1502 Test Cap NACE Rated Wing Thread Caps NPT Port for Sour Service

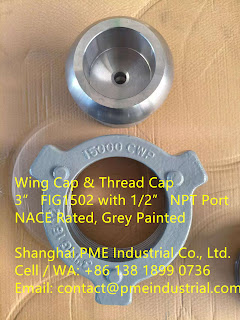

PME 3″ Figure 1502 Wing and Thread Test Caps are engineered for well testing and drilling manifolds. These blind caps feature an integrated 1/2″ NPT port.
Whether you are conducting hydrostatic testing or sealing off a line in a sour gas environment, PME1502 caps deliver the reliability required for the world’s most demanding oilfields.
Key Features for 3 Inch Figure 1502 Test Cap NACE Rated
10000 PSI Working Pressure: Rated for 10K CWP during high-pressure well testing.
NACE MR0175 Compliance: Manufactured from forged alloy steel, making them ideal for H2S (sour gas) environments.
Interchangeability: Compatible with standard Figure 1502 hammer union components from major global manufacturers.
Global Brand Comparison
PME Figure 1502 Test Caps are designed to meet the performance standards set by international industry leaders such as FMC (TechnipFMC), SPM (Caterpillar), and Weir.
Compatibility: Our test caps wing and thread are interchangeable with FMC WECO 1502 components, ensuring a perfect fit with your existing fleet.
Availability: While major brands often face long lead times, we maintain a fast production optimized for rapid deployment to the USA (Permian/Eagle Ford), Middle East (Saudi Aramco/ADNOC projects), and North Sea operations.
Frequently Asked Questions (FAQ)
Q: Can these caps be used for permanent installations?
A: While designed primarily as “Test Blind Caps” for temporary sealing and pressure monitoring during drilling and well testing, NACE-rated construction allows for use in any 1502-compatible system where a blind end with a port is required.
Q: What is the benefit of the 1/2″ NPT port?
A: The port allows to attach a pressure gauge to monitor the line status in real-time.
| Feature | 3″ 1502 Wing Cap | 3″ 1502 Thread Cap |
| Nominal Size | 3 Inch | 3 Inch |
| Union Type | Figure 1502 | Figure 1502 |
| Connection Type | Wing Nut Side | Threaded Side |
| Port Size | 1/2″ NPT | 1/2″ NPT |
| Pressure Rating | 10,000 PSI CWP | 10,000 PSI CWP |
| Test Pressure | 15,000 PSI | 15,000 PSI |
| Material Standard | Forged Alloy Steel | Forged Alloy Steel |
| Compliance | NACE MR0175 (Sour Service) | NACE MR0175 (Sour Service) |
Contact PME sales team for a quote on NACE-certified 3″ 1502 Wing and Thread caps.
