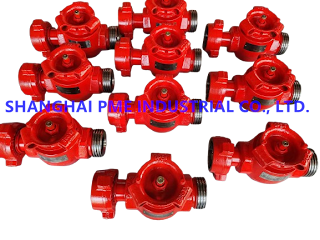

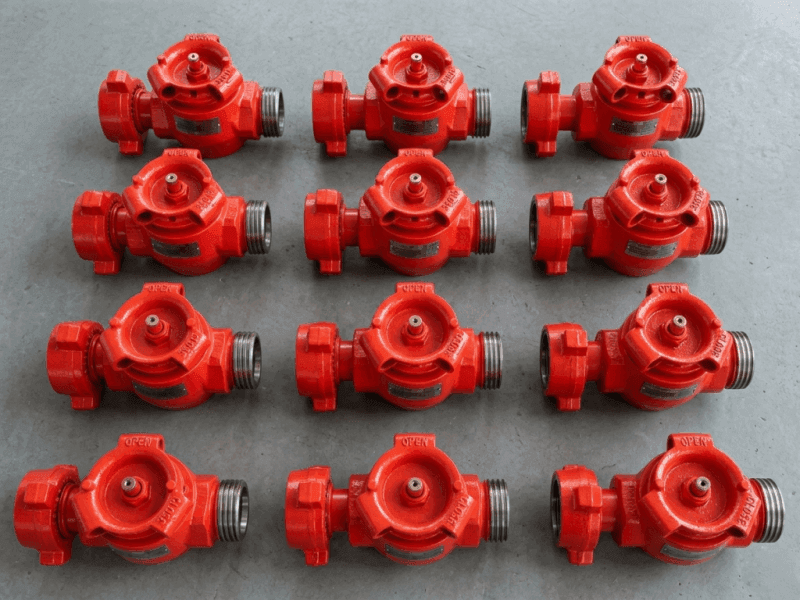

High Pressure Plug Valve

PME 1”, 2” and 3” plug valves with rated working pressure of 42MPa, 70MPa, 105Mpa, 140Mpa (6000Psi, 10000Psi, 15000Psi, 20000Psi) are available. The end connection can be of union, LP, TBG thread.

All the plug valves are made as standard API 6A and NACE MR 0175, and can be connected with other similar products in the world.

The repair kits can be interchanged with the same type of valves of SPM.

Various models of plug valves are relevant repair kits for normal temperature, low temperature and sour gas conditions are available.

PME Plug Valve Assembly 2″ X 1″ Fig 602 M X F Union Ends 6000 PSI Standard & H2S Service

PME Plug Valve Assembly 2″ X 2″ Fig 602 M X F Union Ends 6000 PSI Standard & H2S Service

PME Plug Valve Assembly 3″ X 3″ Fig 602 M X F Union Ends 6000 PSI Standard & H2S Service

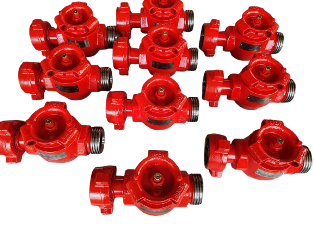

PME Plug Valve Assembly 2″ X 1″ Fig 1502 M X F Union Ends 15000 PSI Standard & H2S Service

PME Plug Valve Assembly 2″ X 2″ Fig 1502 M X F Union Ends 15000 PSI Standard & H2S Service

PME Plug Valve Assembly 3″ X 3″ Fig 1502 M X F Union Ends 15000 PSI Standard & H2S Service

The repairing and maintenance of valve body can be performed without being removed from the line, and no special tool is needed.

The plug valves, treated with special coating process, have excellent performance in wear and corrosion resistance;

Apparent open/ close identification and position limiting mechanism are provided;

Multiple opening devices are for your option;

Lower operating torque, easy and flexible operation;

Special grease has the dual function of lubricating and sealing.

Plug Valves (Union Connection & Thread Connection)

Plug Valve Size	Hammer Union Connection	Service	SPM PN	FMC PN
1” x 2”	2” FIG1502 MxF, FxF, MxM	Standard	1A14483 Manual	P516108 ULT 150
1” x 2”	2” FIG1502 MxF, FxF, MxM	H2S Service	1A19777 Manual	P516208 ULT 100
2” x 2”	2” FIG1502 MxF, FxF, MxM	Standard	1A14487 Manual	P537789 ULT 150
2” x 2”	2” FIG1502 MxF, FxF, MxM	H2S Service	1A20211 Manual	3234183 DR200
2” x 2”	2” FIG1502 MxF, FxF, MxM	Standard	1A14487HB Hydraulic	P537789 ULT 150
3” x 3”	3” FIG1502 MxF, FxF, MxM	Standard	2A26611 Manual	P555686 ULT 150 (Manual)
3” x 3”	3” FIG1502 MxF, FxF, MxM	Standard	1A14496H Hydraulic	P522233 ULT 100 (Handwheel)
3” x 3”	3” FIG1502 MxF, FxF, MxM	Standard	1A14496 Gear	P522233 ULT 150 (Handwheel)
